Timber Frame Vs. Post and Beam: What’s the Difference

While often used interchangeably, timber frame construction and post and beam construction are two distinct building methods. Both rely on large exposed wood beams, both are visually striking, and both deliver strong, long-lasting structures—but the differences lie in the details of how those beams are joined and how the structure carries its weight.

So, let’s dive into the question of the day: What is timber frame construction, and how does it differ from post and beam framing?

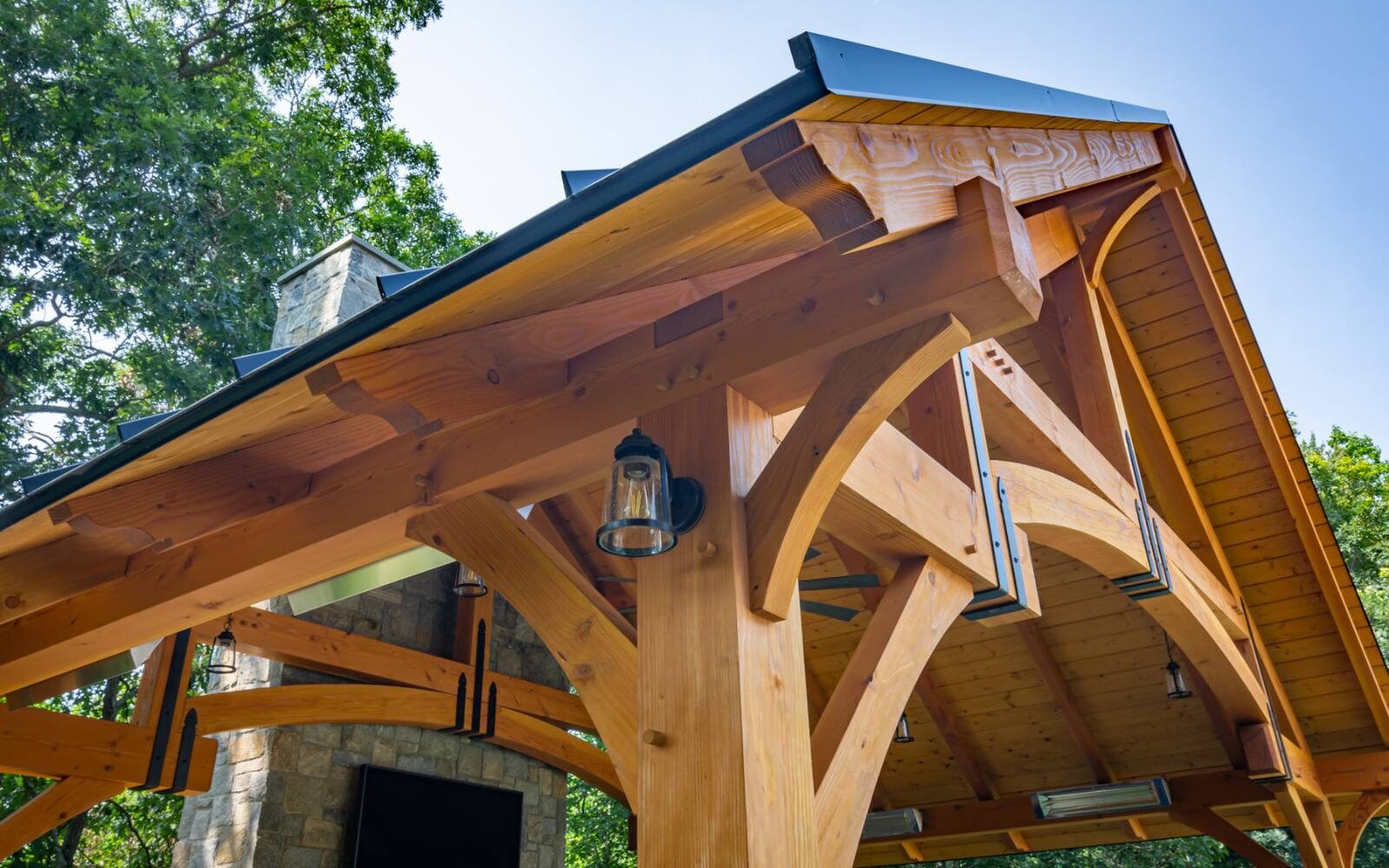

What is Post and Beam Construction?

Post and beam construction is a modern construction method that uses heavy timber posts and beams that are fastened together using metal connectors such as bolts, plates, and steel gussets. These fasteners are usually left visible for an industrial-style look or concealed for a cleaner look.

Post and Beam construction creates the traditional appearance of timber framing with modern convenience. The joint connections are pre-fabricated and straightforward, often requiring less labor-intensive joinery, which can lead to quicker builds and more budget-friendly options.

What is Timber Frame Construction?

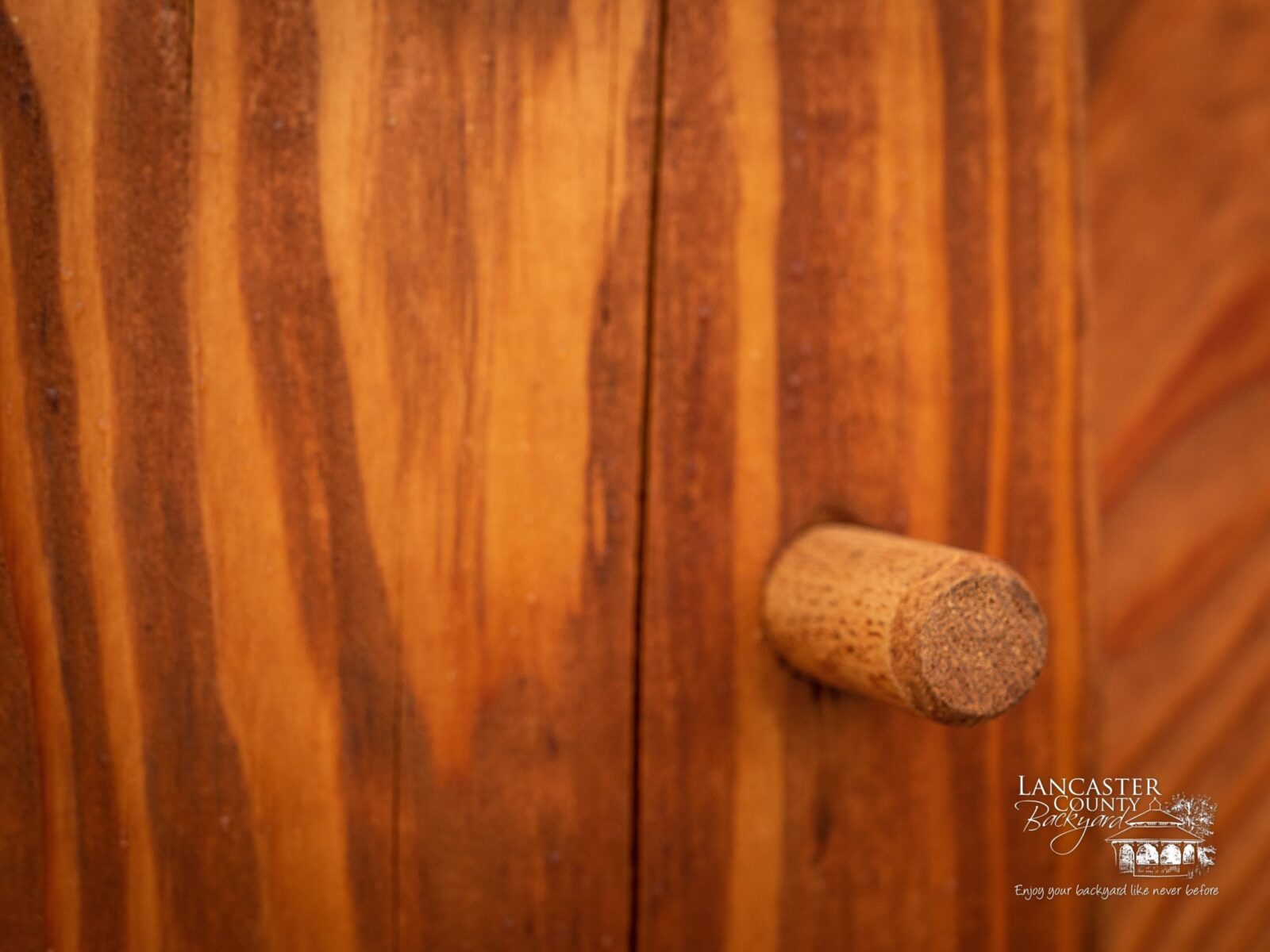

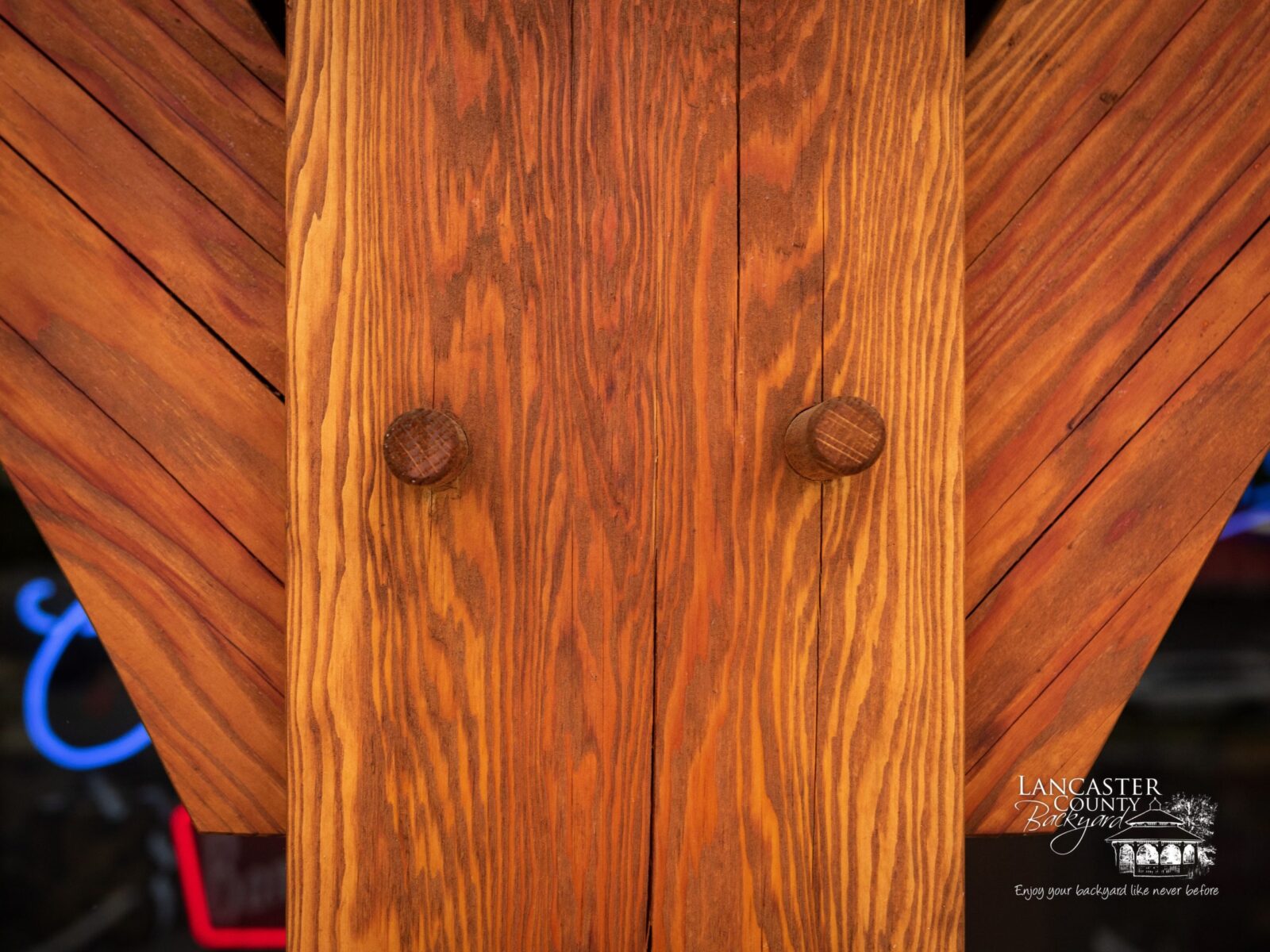

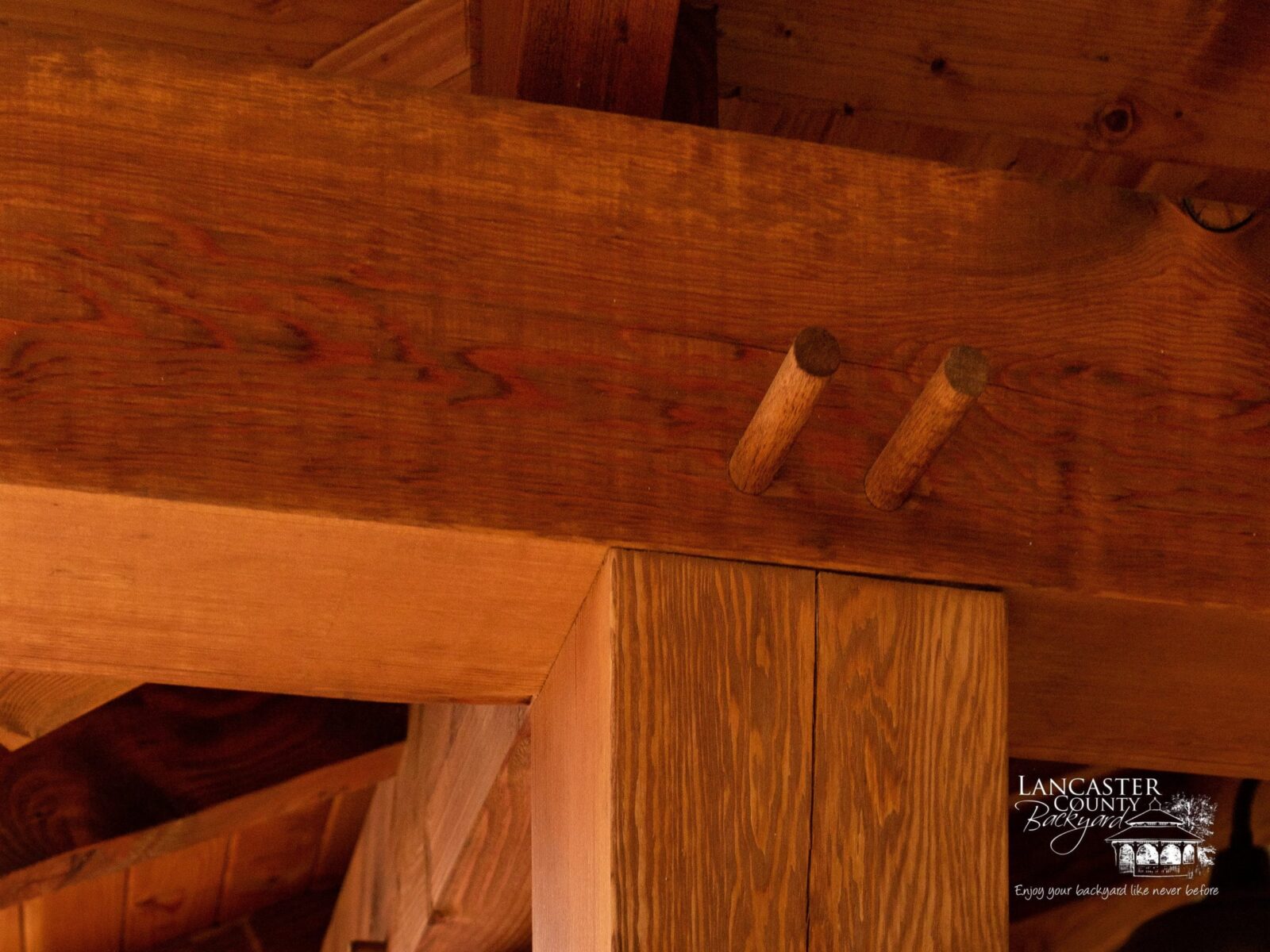

Timber frame construction dates back centuries and is known for its traditional joinery techniques—specifically, mortise and tenon joints secured with wooden pegs. This method relies on the precision fit of interlocking wood components rather than solely metal fasteners.

Craftsmanship is central to timber framing. Whether cut by hand or with a CNC machine, each joint is engineered for strength and beauty, allowing for self-supporting frames that become architectural features in their own right.

Timber Frame vs Post and Beam: Key Differences

Timber framing and post and beam construction are very similar. Both use heavy timbers to create the frame of a structure. This frame, for both methods, is load-bearing and commonly left exposed for aesthetic values. Additionally, both construction methods are considered sustainable construction. Air drying timbers and the use of natural materials reduce environmental impact in both cases.

Finally, both methods are strong and durable, but how they achieve that strength—and the aesthetic they create—differs.

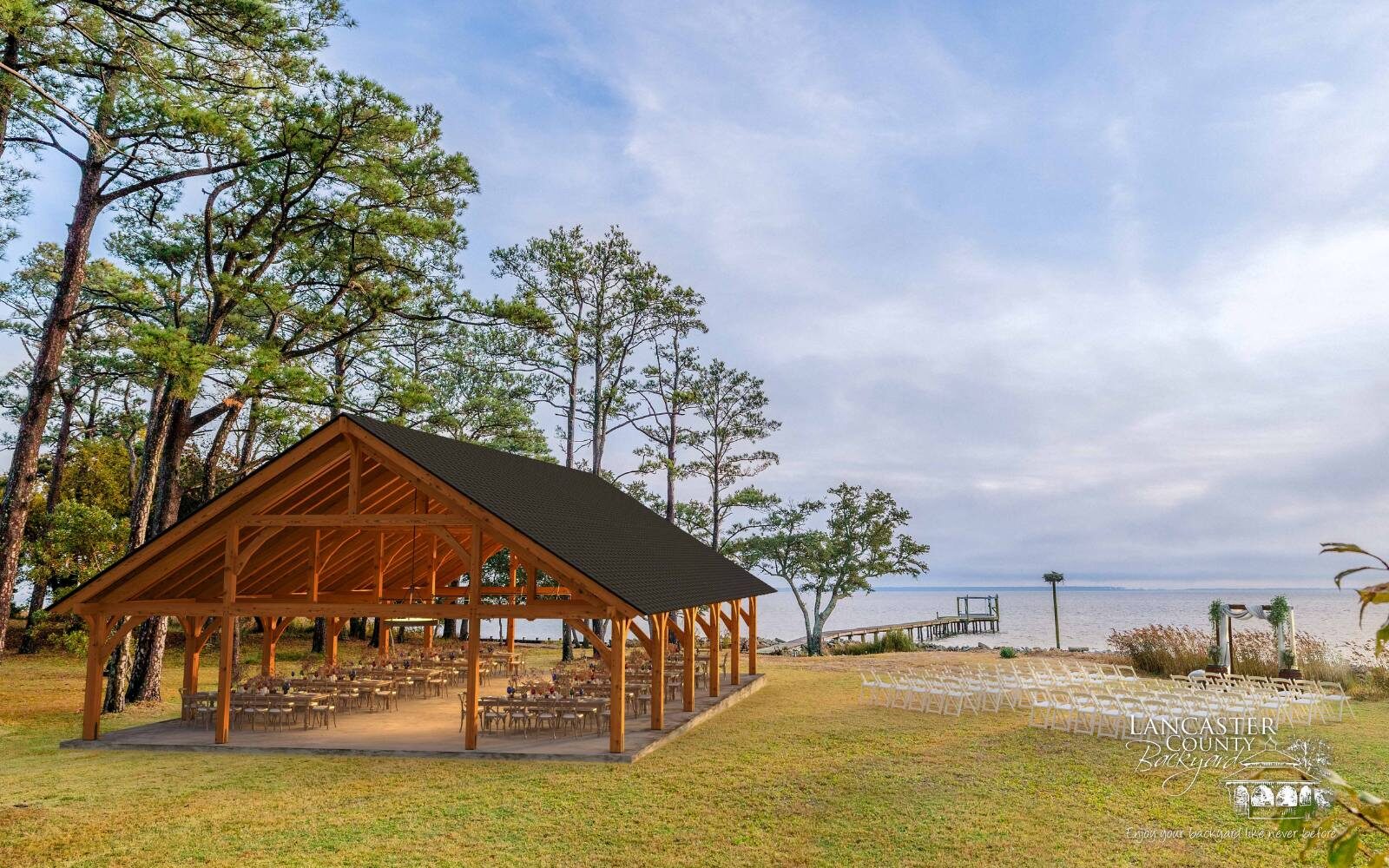

Structural Differences Between Timber Framing vs Post and Beam

Feature	Timber Framing	Post and Beam
Joinery	Mortise & tenon, wood pegs	Bolts, metal plates, screws
Craftsmanship	Precision handwork or CNC joinery	Metal joints allow for modern assembly and faster build
Fasteners	Primarily Wood	Exposed or hidden steel
Look & Feel	Historic, artisanal, seamless, classic	Utilitarian, rough blend of rustic and industrial elements
Flexibility in Design	Highly customizable	Slightly more modular
Load Distribution	Through carefully fitted joinery	Through mechanical fasteners

Curious how timber framing compares to traditional stick-built construction?

Don’t miss our in-depth guide: Timber Framing vs. Traditional Construction.

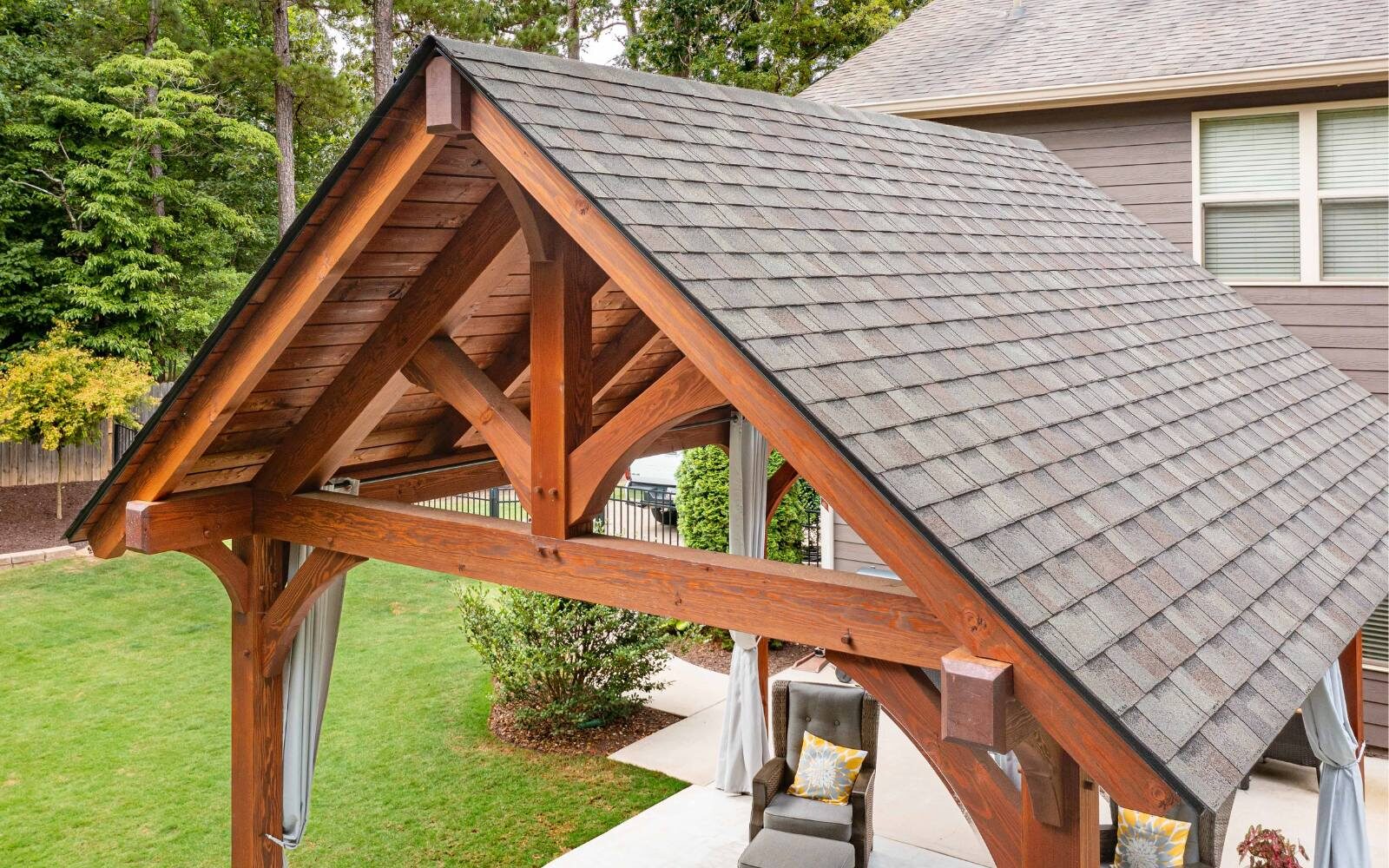

Cost Difference: Timber Framing vs Post & Beam

In general, post and beam construction tends to be more cost-effective than timber framing due to much simpler joinery, shorter build times, and less specialized labor.

Timber framing, on the other hand, involves a higher investment in craftsmanship and materials. You’re paying for artistry, structural integrity, and the timeless beauty that handcrafted joinery provides.

Aesthetic and Functional Differences

While both styles showcase exposed beams and natural wood grain, each construction type has its own unique look and purpose.

• Timber Framing: Clean, elegant joints. The craftsmanship becomes a centerpiece. Perfect for high-end homes, pavilions, and cathedrals.

• Post and Beam: Can be adaptable to modern-rustic styles. The use of metal can sometimes result in a harsh or industrial look that lacks the artistry of true timber framing.

Functionally, both styles support open-concept layouts and vaulted ceilings. Timber frames allow complex truss designs like the king post or hammer beam without the need for metal brackets, giving designers greater aesthetic flexibility.

Strength, Durability, & Load-Bearing Considerations

Both systems are impressively strong and engineered to last—but they work in different ways:

Timber Framing transfers structural loads through precision-fitted joinery, making the frame inherently rigid and stable.

Post and beam relies on metal hardware to support loads. While still durable, metal connectors may allow slight movement over time, especially in climates with dramatic seasonal shifts.

When properly maintained, timber frames can last centuries—a testament to their tight joinery and natural material resilience.

Which One Is Right For You: Timber Frame Construction vs Post and Beam

Here’s how to decide which method is the better fit:

Want something faster to build and easier on the budget? Post and beam might be the right choice, but keep in mind that the final look can often feel utilitarian or raw unless executed with care.

Want a statement piece? Something rich in character, architecturally flexible, and built to last generations? Timber framing is your move.

While both methods can be beautiful, strong, and time-tested, timber framing delivers a level of craftsmanship and visual impact that post and beam construction rarely matches.

Want to explore your options? Check out our full line of timber frame and post and beam structures, or contact us to get a custom quote for your next project.
