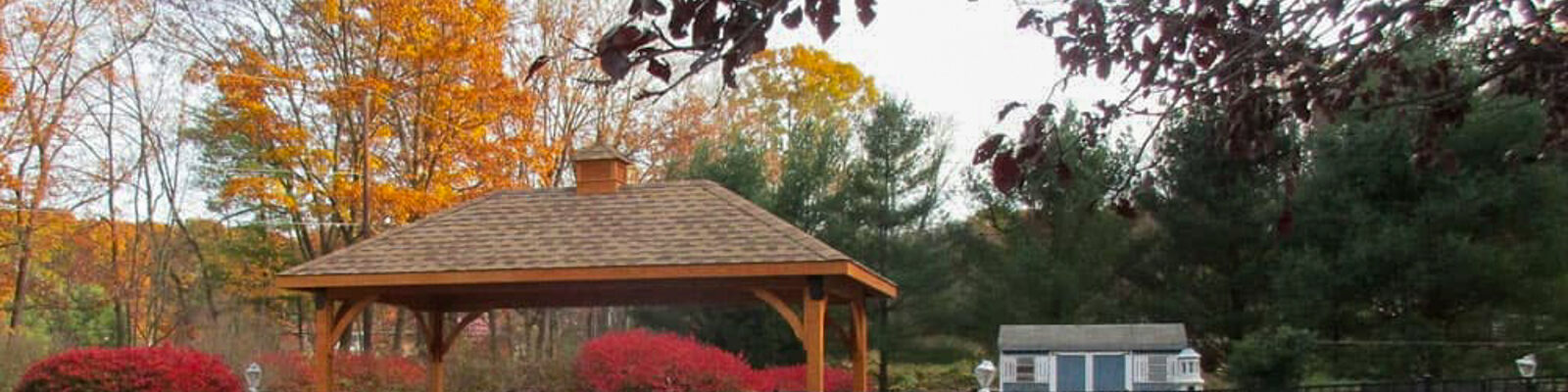

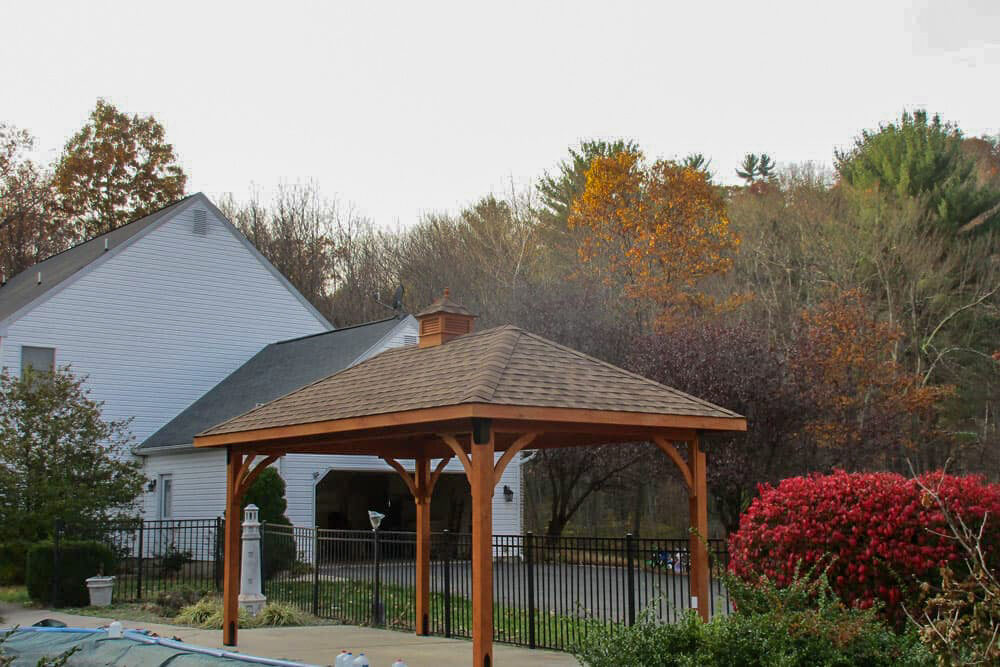

10x18 Stained Outdoor Pavilion in New Ringgold, PA Cheyenne Wood Pavilion by Lancaster County Backyard

Before Jeffery decided to go with one of our wood pavilions, he was using a cheaper aluminum pavilion. These cheaper structures are easy to get at big box retail stores such as LowesAmazon, or Home Depot. The problem Jeffery had was the lack of strength and stability in these outdoor pavilions. It only took a strong gust of wind to blow it over and into his swimming pool. Besides, these light frames give out after a few years. Jeffery was ready to invest in a structure with lower maintenance — a pavilion that would last for years.

Jeffery wanted an outdoor pavilion beside his summer swimming pool. He wanted a pavilion to provide shade from the hot summer sun and a place for his family and friends to relax and enjoy their time together. His previous setup was not working, so he decided to go with one of our quality, lasting pavilions.

Features

Before we sell our gazebos, pergolas, or pavilions, we discuss each customer’s unique tastes and requirements then build to their likings. Even though this outdoor pavilion was not far from a standard project, there are still a lot of features that we did that are special to this job. For example, we used specialty braces to connect each post and beam, designed to accommodate the unique size of the structure. We also added a cupola for special effects, and included an electrical package for their convenience and more.

Dimensions:

  • Rot-resistant pressure-treated #1 southern pine materials
  • Laminated posts and beams for beauty and to prevent bending and cracking

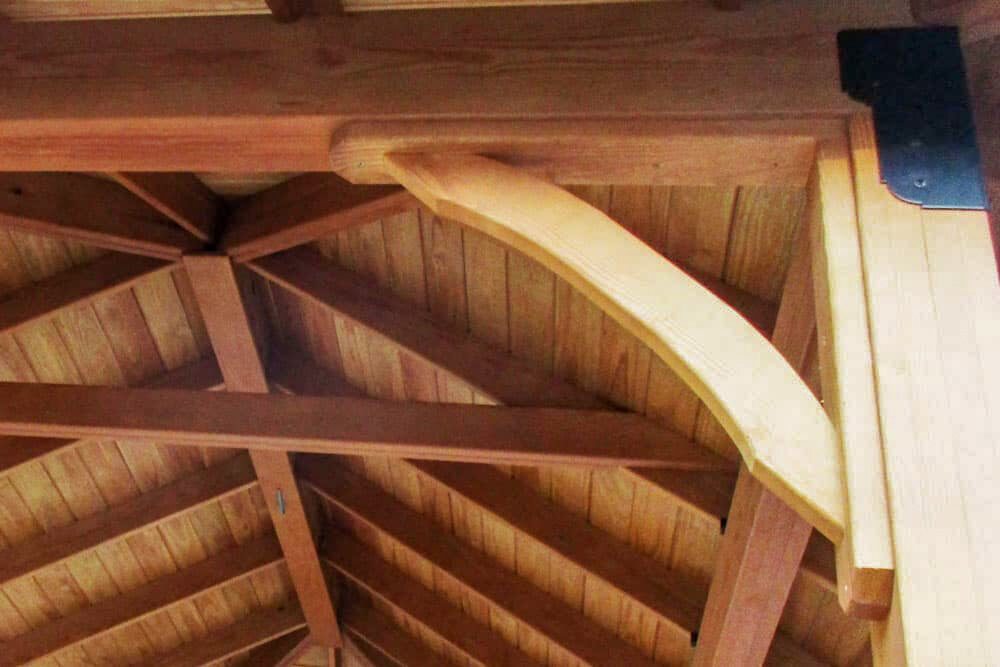

  • Curved knee braces on posts
  • Powder-coated black stainless-steel post anchor brackets

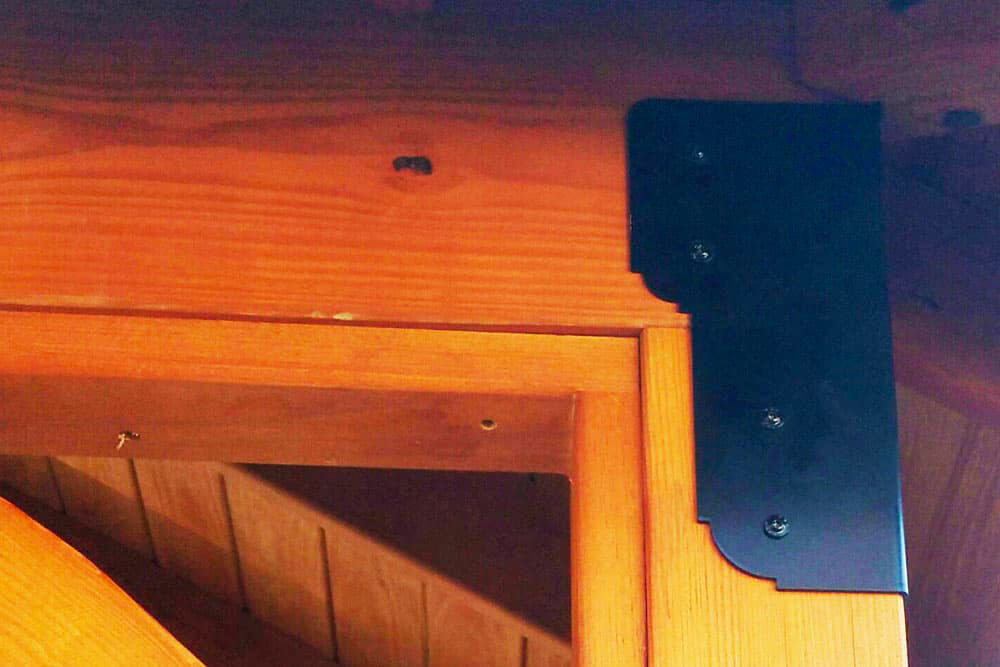

  • Powder-coated black stainless-steel post to beam brackets

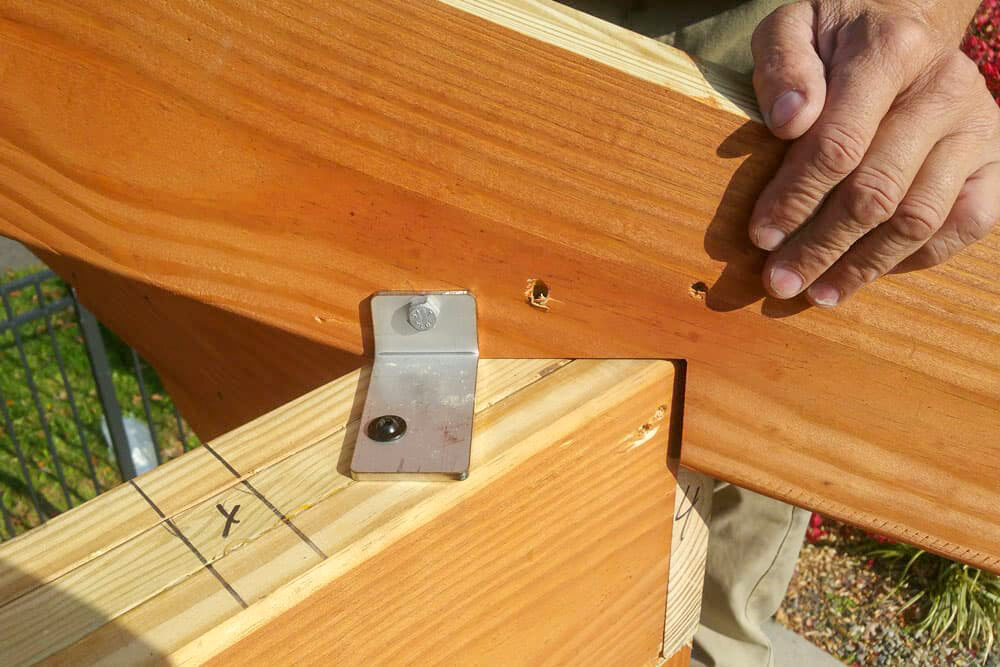

  • Stainless-steel beam to rafter angle brackets
  • 30 year warrantied asphalt shingles
  • 2″x6″ rafter cross ties for added roof strength to carry a heavy snow load
  • 2″x8″ hip rafters for additional strength and to hide ends of 2×6 rafters

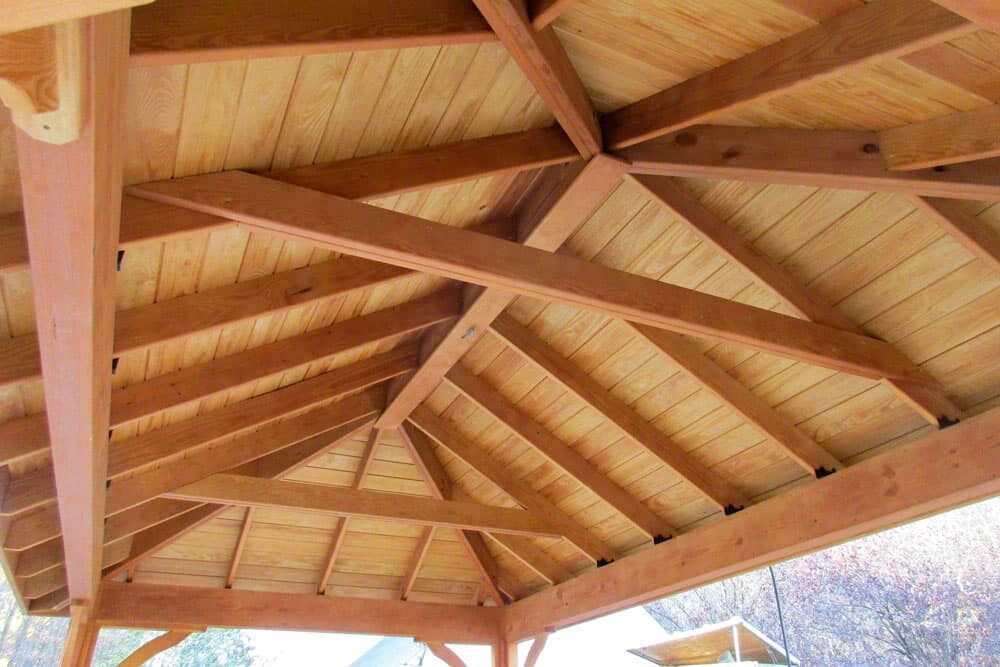

  • 1″x6″ tongue and groove roof decking for strong roof face and beautiful underside
  • Doubled 2″x8″ roof ridge pole for roof strength
  • Tripled 2″x10″ laminated beams for beauty and strength

Quality Specs:

  • 10’L x 18’W x 13’H
  • Low-slope 7/12 pitch roof

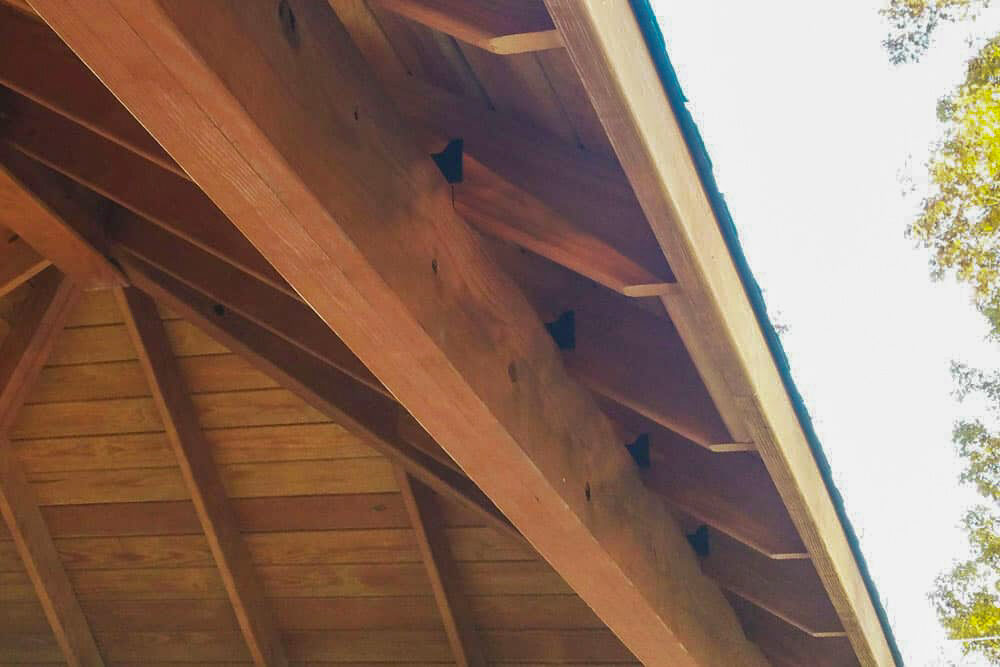

  • 2″x6″ rafters, 2′ on center

Special & Custom Features:

  • Cedar stained finish
  • Shakewood color shingles
  • Ornate roof peak cupola for additional character
  • Pleasing 12″ overhangs
  • Convenient electrical package
  • Curved knee braces on posts and beams
  • Aesthetically pleasing 1″x6″ covering ridge pole on the underside
  • Special spearhead design on the foundation to post brackets
  • Specially designed post to beam brackets

The Outcome of Building this Outdoor Pavilion

This outdoor pavilion project was one of our favorite jobs. It was a pleasure working with Jeffery and designing his project. He treated us nicely and respected our workers — even providing free pizza! Most of all, we completed the job knowing we had reached our goal of customer satisfaction.

But please, don’t take our word for it — consider Jeffery’s enthusiastic customer review:

The conclusion? Jeffery is a happy customer and we are a satisfied builder.

Location & Source

This outdoor pavilion is located in New Ringgold, Pennsylvania. We at Lancaster County Backyard designed and manufactured it from the ground up. We built it at our manufacturing facility in Kinzers, PA on South New Holland Road a few miles southeast of Intercourse. Our location on Google Maps.
